Measuring fixtures and measuring machines
Development, design and manufacturing
measuring fixtures
Measuring fixtures and measuring machines
Measuring fixtures are used for measuring and calibrating parts. The individual measuring fixtures are equipped with quality gauges (Mahr), or a gauge according to the customer's specifications.
Measuring fixtures and machines enable error-free work operations to be carried out even without the right to a professional and qualified workforce.
By applying the Poka-Yoke system, a flawless inspection is subsequently achieved.
Measuring fixtures or Measuring stations are constructed:
-
mechanically, pneumatically and hydraulically operated
-
Poka-yoke principles
-
3-2-1 Fixation
-
Optical inspection, optical sensors for the presence of parts and components, induction sensors, pneumatic barriers, pneumatic cylinders, sensors
-
Festo, Pneumax
Commonly used materials for the production of fixtures
Aluminium
Stainless steel
Steel
Sikablock
Wood
Plywood

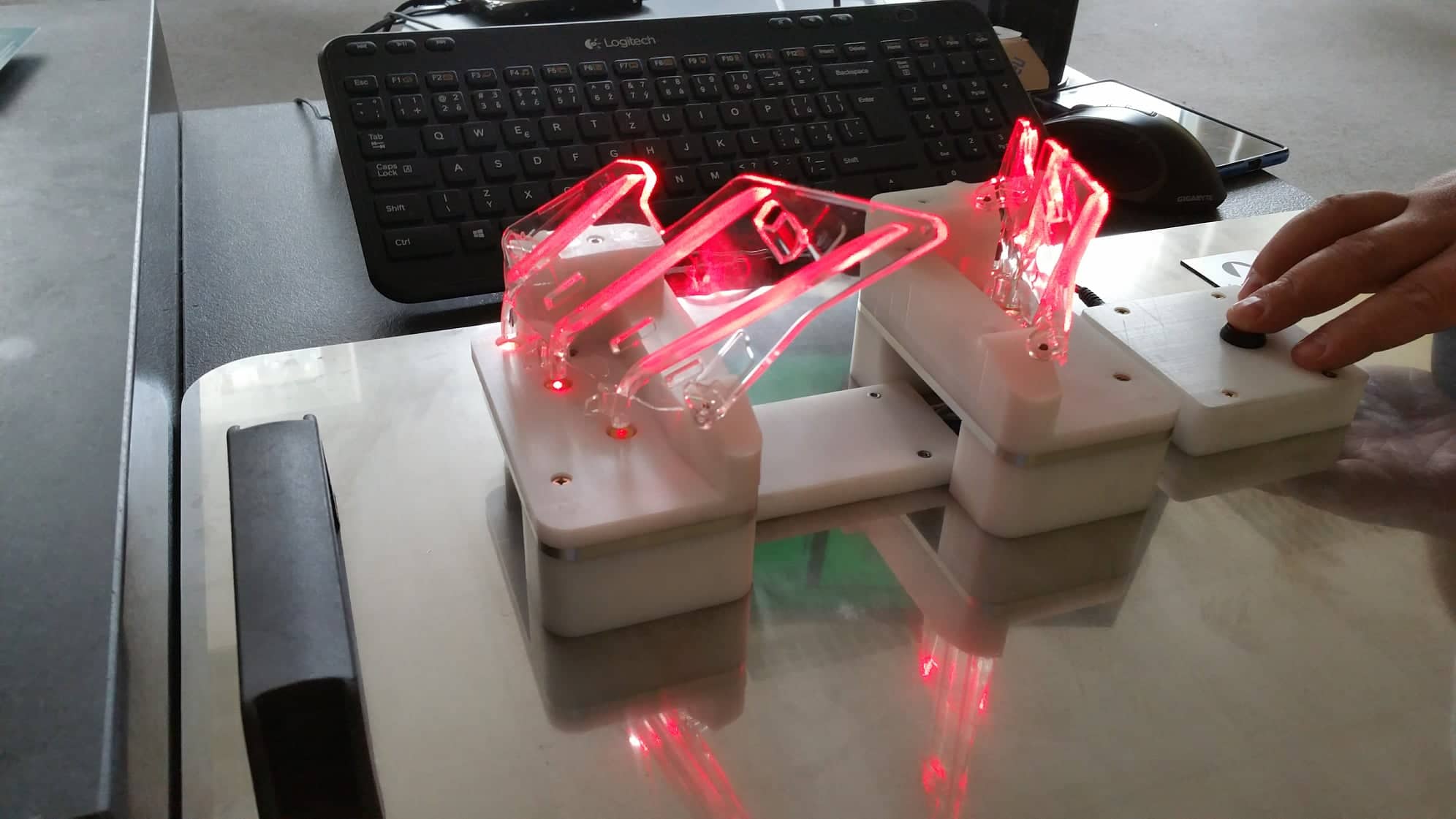

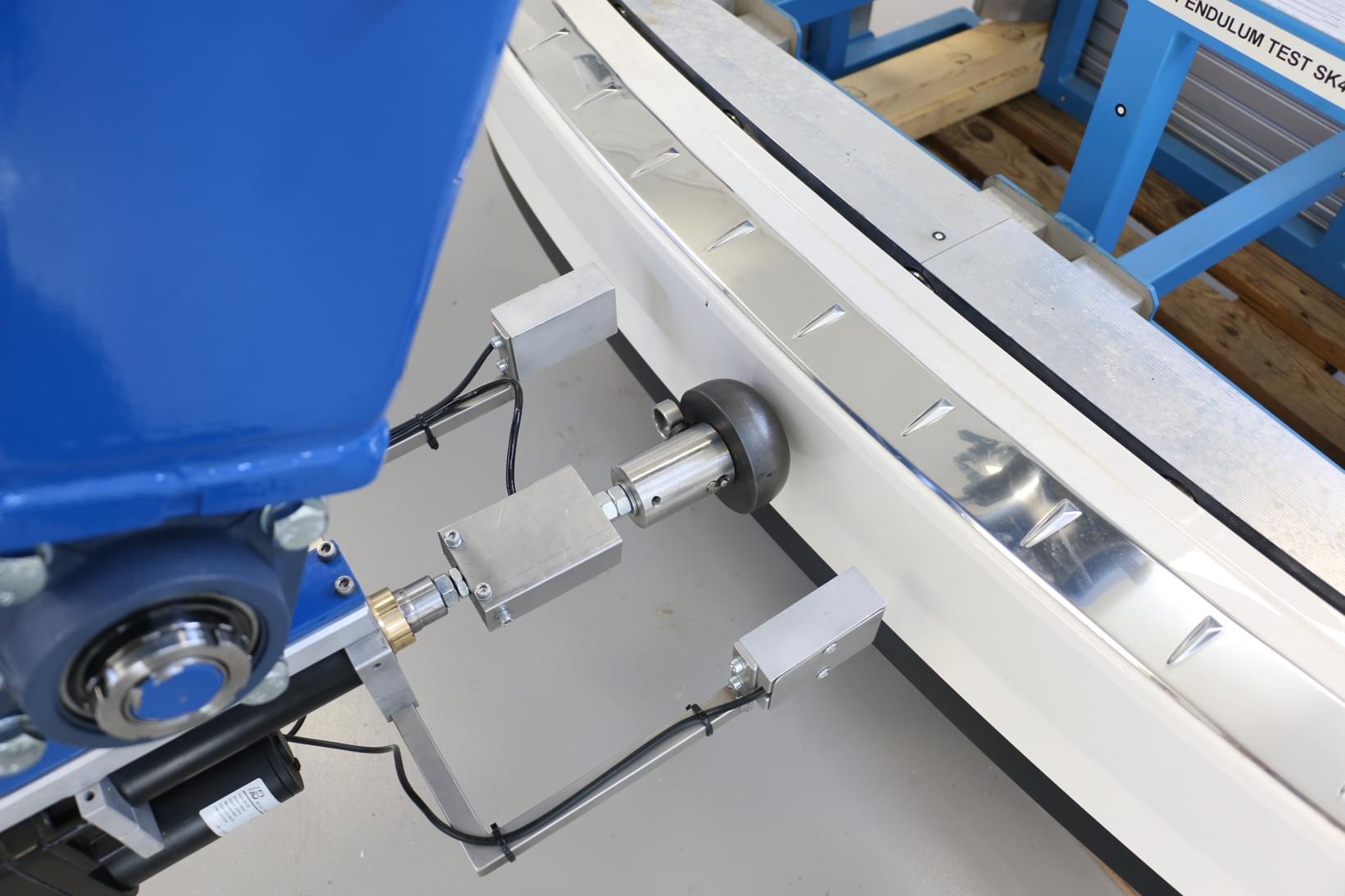

Selected realizations
The results speak for us
